One of the headers you usually see on a motherboard is the CHA_FAN. The first time I ever put my PC together, I found this header on the motherboard and was utterly perplexed. After doing some research, I found out that is where you hook up your case fans to cool the system and to have it running efficiently.
CHA_FAN on a motherboard stands for Chassis Fan. It’s a connector to power and control case fans, helping cool your computer by regulating airflow based on system temperatures.
This article will discuss “What Is Cha Fan On Motherboard?”.
Table of Contents

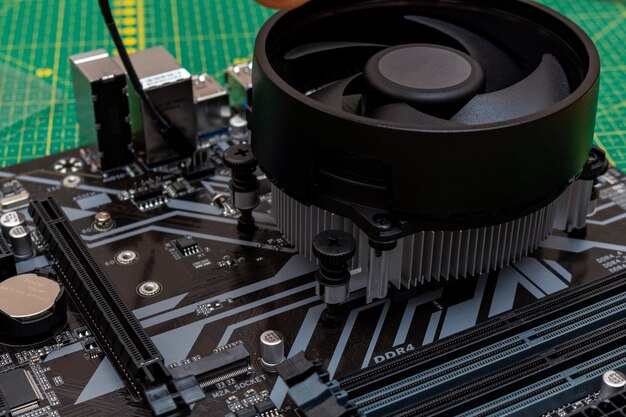

Role of the CHA_FAN in PC Builds:
The CHA_FAN (Chassis Fan) in a PC build helps keep your system cool by improving airflow inside the case. It prevents overheating of components like the CPU and GPU, ensuring stable performance and extending the life of your computer parts.
Read More: Should I Connect HDMI to GPU or Motherboard -Ultimate Guide 2024!
What Does CHA_FAN Mean on a Motherboard?
CHA_FAN on a motherboard stands for “Chassis Fan.” It’s a connector to power and control the fans inside your computer case. These fans help cool your system by improving airflow, which prevents overheating and keeps your PC running smoothly.
How Does a CHA_FAN Work?
A CHA_FAN (Chassis Fan) helps keep your computer cool by pulling fresh air into the case or pushing warm air out. It connects to the motherboard, runs at adjustable speeds, and ensures proper airflow to prevent overheating and protect your PC components.
Types of Fans Connected to CHA_FAN:
1. Case Fans:
Case fans are those small fans inside the computer case that remove hot air and enter fresh air for cooling. They, therefore, prevent overheating, extend the lifespan, and improve performance.
2. RGB Fans:
RGB fans have LED lights that are integrated and can be changed color. These computer fans cool down your system while giving you a stylish, usable look. They’re pretty cool, and you can change the illumination to match your mood or your setup.
3. Silent Fans:
Silent fans are computer fans who work silently and keep your PC cool. They allow less noise without losing performance, which ensures a better experience in smooth and peaceful computing, especially for working or gaming in quiet places.
4. High-Performance Fans:
High-performance fans are produced to allow faster cooling of your PC or device. They move a lot of air at high speeds and thus prevent overheating, improving the device’s overall performance. That is particularly very helpful when you are doing heavy tasks or gaming.
Why Is CHA_FAN Important?
1. It optimizes airflow:
Airflow is optimized to keep your computer cool and working better for a longer time by the extended lifespan of the components. The proper ventilation of the device is ensured by managing fans, organizing cables, and maintaining airflow direction, which does not allow overheating.
2. Maintains system temperature:
System temperature should not be allowed to heat up. Adequate cooling will keep your computer’s components in proper operation and safety, thus extending their lifetimes and improving their performance as they are prevented from getting hotter during use.
3. Ensures Improved Cooling:
Improved cooling allows for safe temperatures for your computer components; hence, the CPU and GPU are prevented from reaching dangerous temperatures, which could overheat, wear them out faster, and reduce the system’s general working and lifespan.
4. Avoids Overheating:
The motherboard controls the system by ensuring it does not get too hot. In this way, this board controls electricity flow so that elements do not get too hot, which can damage your computer and reduce its performance.
Read More: Isn’t All Components Connected To A Motherboard – Compatibility Guide You Need!
How to Connect Fans to CHA_FAN:
1. Fan Connectors:
Fan connectors are applied to attach a fan to either the motherboard or the power supply for cooling. These connectors ensure good airflow and that your system remains calm, which would not be subjected to overheating and potentially damage any part of your computer.
2. Via Fan Splitter Cable:
A fan splitter cable lets you attach several fans to one motherboard header. This will prove immensely useful in improving airflow inside your PC without needing additional fan slots. Just plug it in and benefit from better cooling!
3. Straight Motherboard Connection:
A direct connection to the motherboard means that other parts of the computer, like the central processing unit, the random-access memory, and the power source, will be connected directly to the motherboard. This allows all the parts to interact harmoniously so your computer will run smoothly and smoothly.
CHA_FAN vs CPU_FAN: What’s the Difference?
A CHA_FAN (chassis fan) cools the inside of your computer case, helping maintain airflow, while a CPU_FAN cools the processor explicitly. Both prevent overheating, but the CPU_FAN focuses on the processor, while the CHA_FAN supports overall system cooling.
Common Issues with CHA_FAN:
- No Power to the Fan
If the fan connected to the CHA_FAN header isn’t spinning, it could be due to a loose or improperly connected cable, or the header may not receive power. - Fan Not Running at Full Speed
Fans may not operate at full speed due to BIOS settings, incorrect fan profiles, or issues with the fan itself, leading to insufficient cooling. - CHA_FAN Header Not Recognized
Sometimes, the motherboard may fail to recognize the CHA_FAN header because of a faulty motherboard, outdated drivers, or incorrect BIOS settings. - Overheating Despite FAN Connection
This could happen if the CHA_FAN is not optimally configured or too many connected fans must be powered sufficiently, resulting in poor airflow or cooling performance.
Where Is the CHA_FAN Header Located on the Motherboard?
The CHA_FAN header on a motherboard is typically located near the board’s edge, close to the CPU area. It is labeled “CHA_FAN” or “CHA FAN” and connects the chassis fan, which helps cool the computer case.
What does cha mean on a motherboard?
CHA on a motherboard refers to the Channel. It indicates a memory slot or configuration for RAM. Some motherboards have multiple channels to improve performance by allowing the CPU to access memory more efficiently, helping your system run faster and smoother.
What is CHA_FAN for?
CHA_FAN stands for “Chassis Fan.” It refers to the fan inside a computer case that helps cool the internal components like the motherboard, CPU, and graphics card. Proper airflow prevents overheating and keeps your system running smoothly and efficiently.
What is the difference between a CPU fan and a CHA fan?
A CPU fan cools the processor (CPU) to prevent overheating, while a CHA fan (chassis fan) cools the inside of the computer case. The CPU fan focuses on the processor, and the CHA fan helps improve overall airflow in the case for better temperature control.
What is CHA fan 1 on the motherboard?
CHA Fan 1 on a motherboard refers to the first chassis fan header. It’s where you connect a fan to cool your computer case. This fan helps maintain airflow, preventing overheating by drawing hot air out and keeping the system cool and stable.
Can You Use CHA_FAN for RGB Fans or Lights?
No, the headers are found on CHA_FAN and are intended for case fans. They do not support RGB lighting. RGB lights must be hooked to a dedicated RGB header or controller. Please refer to your motherboard manual for the correct ports to connect your RGB fans or lights.
What Happens If You Don’t Connect Fans to CHA_FAN?
If you do not connect the fans to the CHA_FAN header, your PC case fans will not work, allowing for a potential overheating situation in your computer. Remember that overheating performance may begin and eventually damage your internal parts if left unchecked. Always ensure that you have connected the fans to allow proper airflow.

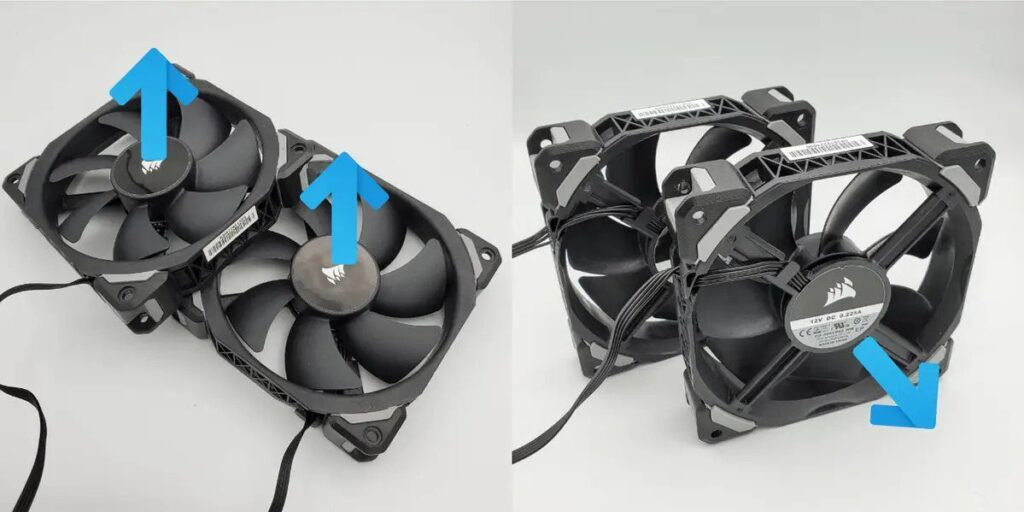

Is CHA_FAN Essential for Proper PC Cooling?
Yes, the CHA_FAN helps properly cool the PC and ensures that air circulates within the case so it doesn’t overheat the components inside. Without one, your PC may overheat and, in worst cases, cause performance problems and damage over time.
Read More: Can You Use 8 Pin 4 Pin Motherboard – A Complete Guide 2024!
FAQs:
1. What Is CHA_FAN On Motherboard?
CHA_FAN (chassis fan) is the fan header on the motherboard for extra cooling fans connected to your PC case. It ensures an improvement of airflow and temperature control within the case, so your components stay within the ideals set for temperatures.
2. Why does CHA_FAN talk about cooling matter?
The CHA_FAN gives your computer case further airflow and removes the generated heat inside the case. The system should work efficiently, and overheating won’t be experienced when the CHA_FAN offers good cooling. Overheating may ruin the components in such a case.
3. Can I use any fan with the CHA_FAN header?
Any FAN compatible with the CHA_FAN connector can be used; however, make sure the fan connector is either of type 3-pin or 4-pin because 4-pin provides more control over speed and noise level than 3-pin.
4. How do I connect my CHA_FAN to my PC?
When installing a CHA_FAN, you directly connect the fan’s connector to the motherboard’s CHA_FAN header. Lastly, ensure that you securely place the fan inside the case to allow airflow in the right direction to enhance the cooling performance.
5. Does CHA_FAN Impact My PC Performance?
Yes, CHA_FAN will undoubtedly impact the PC performance as it minimizes the temperature of the internal parts of the PC. This might result in relatively slow operation of the system or even damage the hardware if the system overheats because of inadequate cooling.
Conclusion:
An essential part of a CHA_FAN is keeping optimal airflow in your PC and preventing overheating. Adequately set up fans ensure higher performance and longevity for your components. Managing cooling effectively makes sure you keep your system running smoothly and efficiently.
